超导液氦液位计
超导液氦液位计1700，同时带有一个液氦通道，一个液氮通道。
超导液氦液位计产品概述

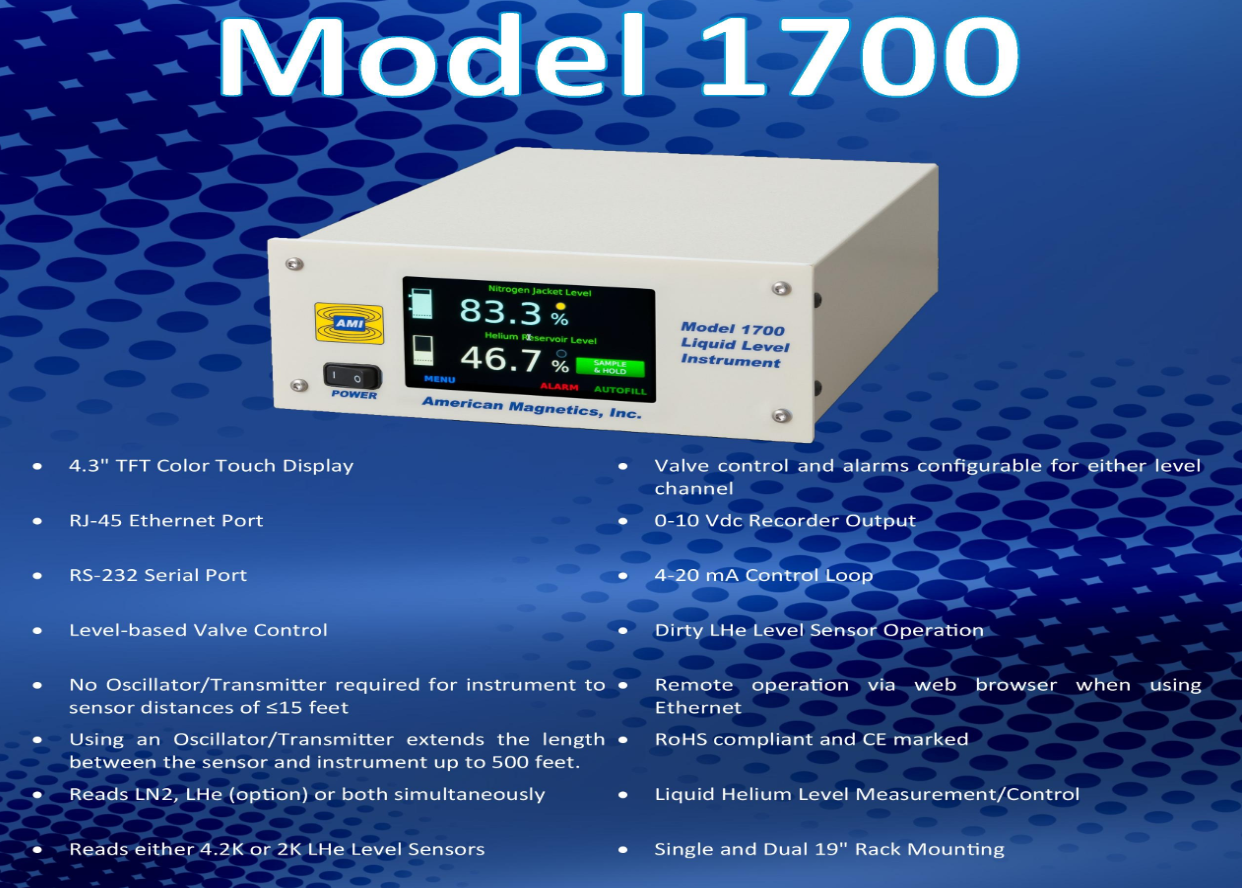

AMI超导液氦液位计1700，同时带有一个液氦通道，一个液氮通道。
主要特点：
1、4.3英寸彩色触摸屏显示，同时显示液氮、液氦
2、可测量2K超流氦液位和4.2K液氦液位
3、带有RS-232及网口接口
4、0-10V 4-20mA模拟输出
5、液氦液位测量范围：1-80''(2.5~200里面)
......
• 4.3" TFT Color Touch Display
• RJ-45 Ethernet Port
• RS-232 Serial Port
• Level-based Valve Control
• No Oscillator/Transmitter required for instrument toEthernetsensor distances of s15 feet
• Using an Oscillator/Transmitter extends the length RoHS compliant and CE markedbetween the sensor and instrument up to 500 feet.
• Reads LN2, LHe (option) or both simultaneously
• Reads either4.2Kor2KLHe Level sensors
• Valve control and alarms configurable for either levelchannel
• 0-10 Vdc Recorder Output
• 4-20 mA Control Loop
• Dirty LHe Level Sensor Operation
• Remote operation via web browser when using
• Liquid Helium Level Measurement/Control
• Single and Dual 19" Rack Mounting
